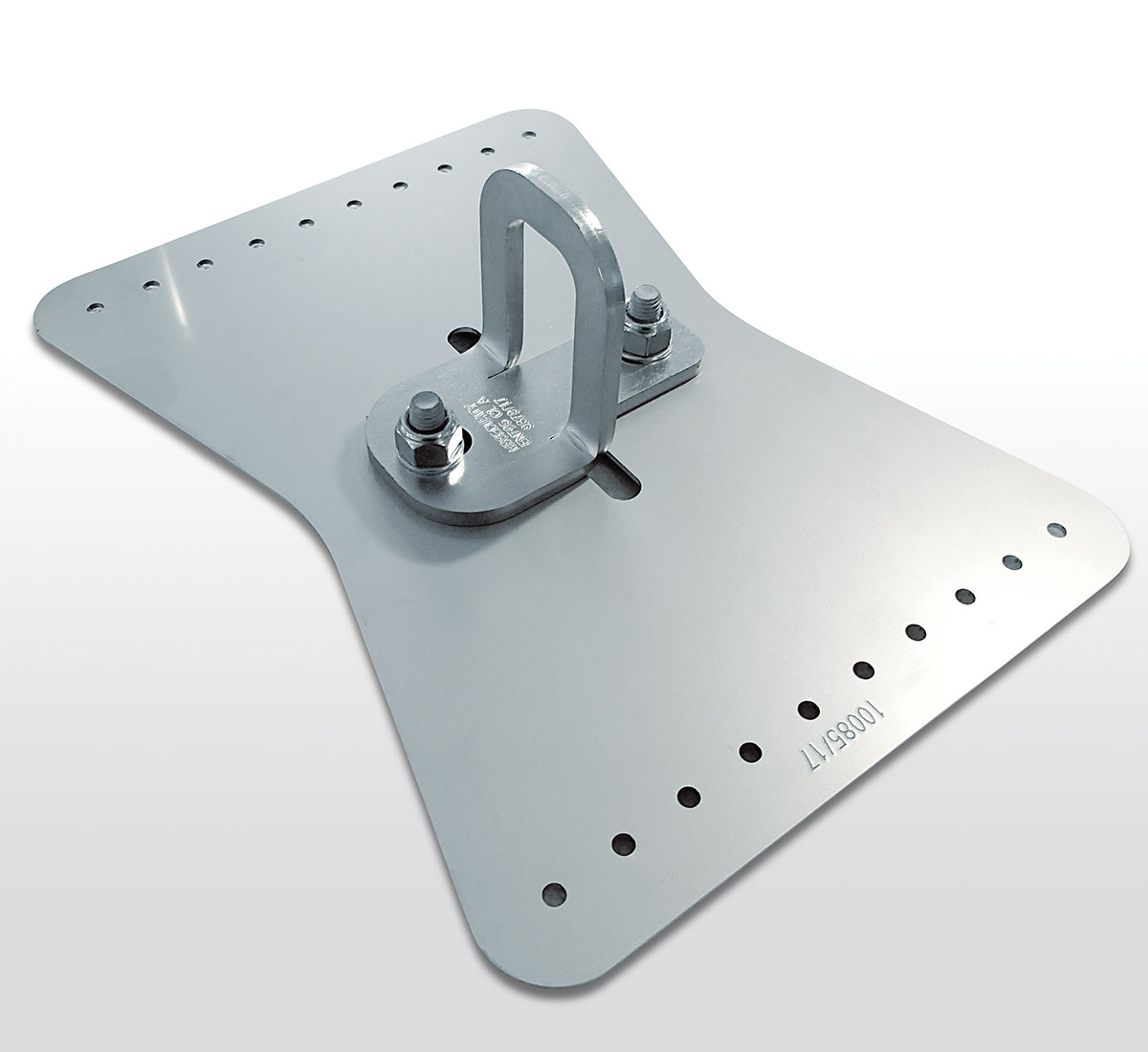

Deviation point for corrugated metal sheet
Use:
Single anchor designed for direct fastening to corrugated metal sheet or sandwich panel. The metal sheet must be suitably thick. Can be used as auxiliary anchor for preventing pendulum effect or creating access paths.
Maximum number of users:
2
Material:
AISI 304 stainless steel plate – galvanised steel hook
Plate size:
to measure w.r.t. sheet seam spacing, th. 2 mm, standard pitch 250 mm with 20 holes ø 5.5 mm for fastening to metal sheet with rivets
Conformity:
Type A EN 795:2012 – CEN/TS 16415:2013
Type A UNI 11578:2015
