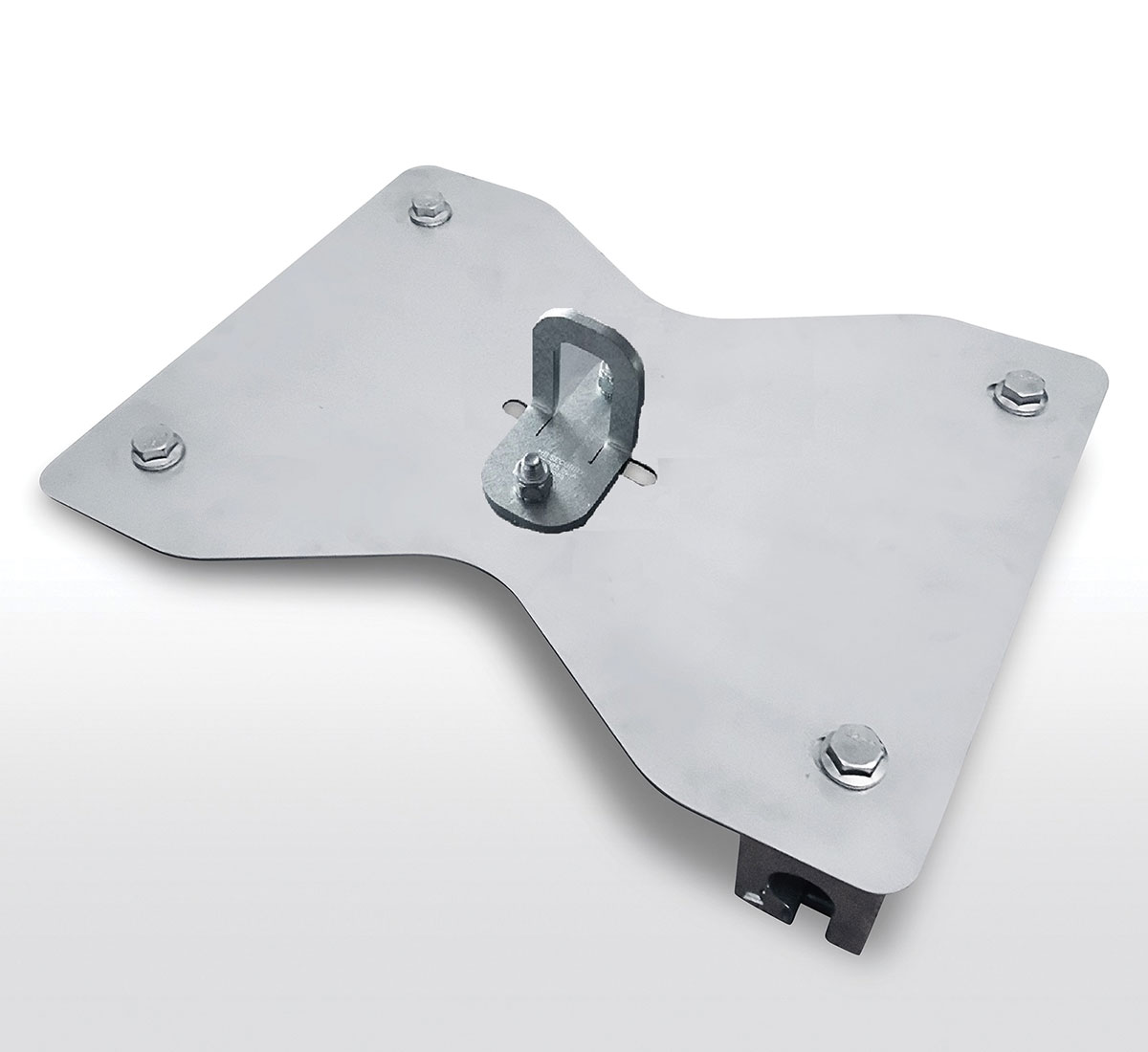

Deviation point for standing seam metal sheet S5®

Use:
Single anchor designed for direct fastening to standing seam metal sheet with specific clamps. The metal sheet must be suitably thick. Can be used as auxiliary anchor for preventing pendulum effect or creating access paths.

Maximum number of users:
2

Material:
AISI 304 stainless steel plate – galvanised steel hook

Plate size:
to measure w.r.t. sheet seam spacing, th. 2 mm, standard pitch 530-560 mm with 4 slot holes for fastening to metal sheet with clamps S5®

Conformity:
Type A EN 795:2012 – CEN/TS 16415:2013
Type A UNI 11578:2015
